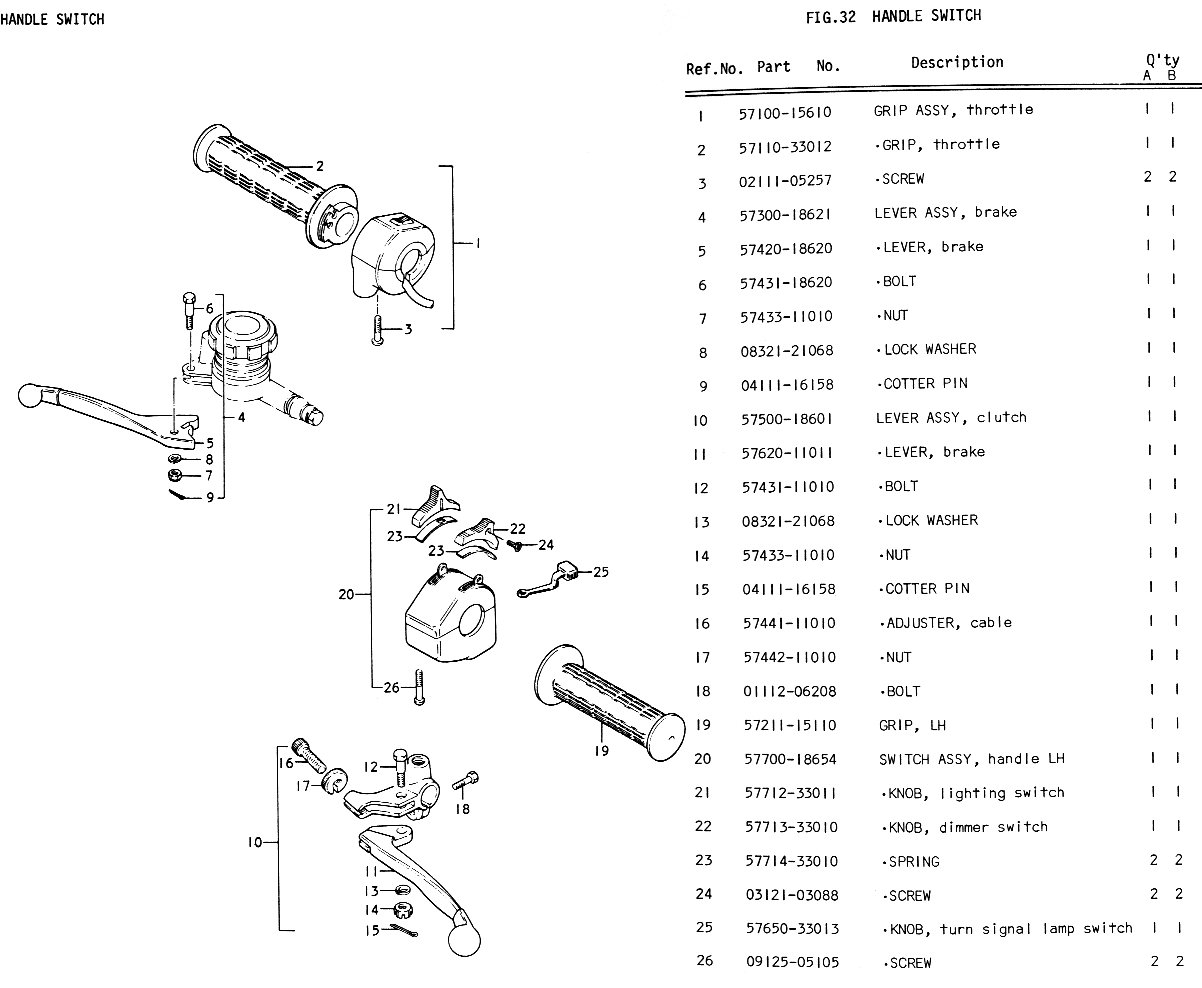

Please note that the GT500 parts manual as supplied by Suzuki has several typos/errors:

the part numbers for the GT500 handle grips are incorrect - the right is listed as 57110-33012 and the left as 57211-15110 which are two different styles -

it should be 57110-15110 (which is not available now so substitute 57110-31012) with 57211-15110 which are high both the 'high' ribbed style as used on GT750's.
