Please note that the GT500 parts manual as supplied by Suzuki has several typos/errors:

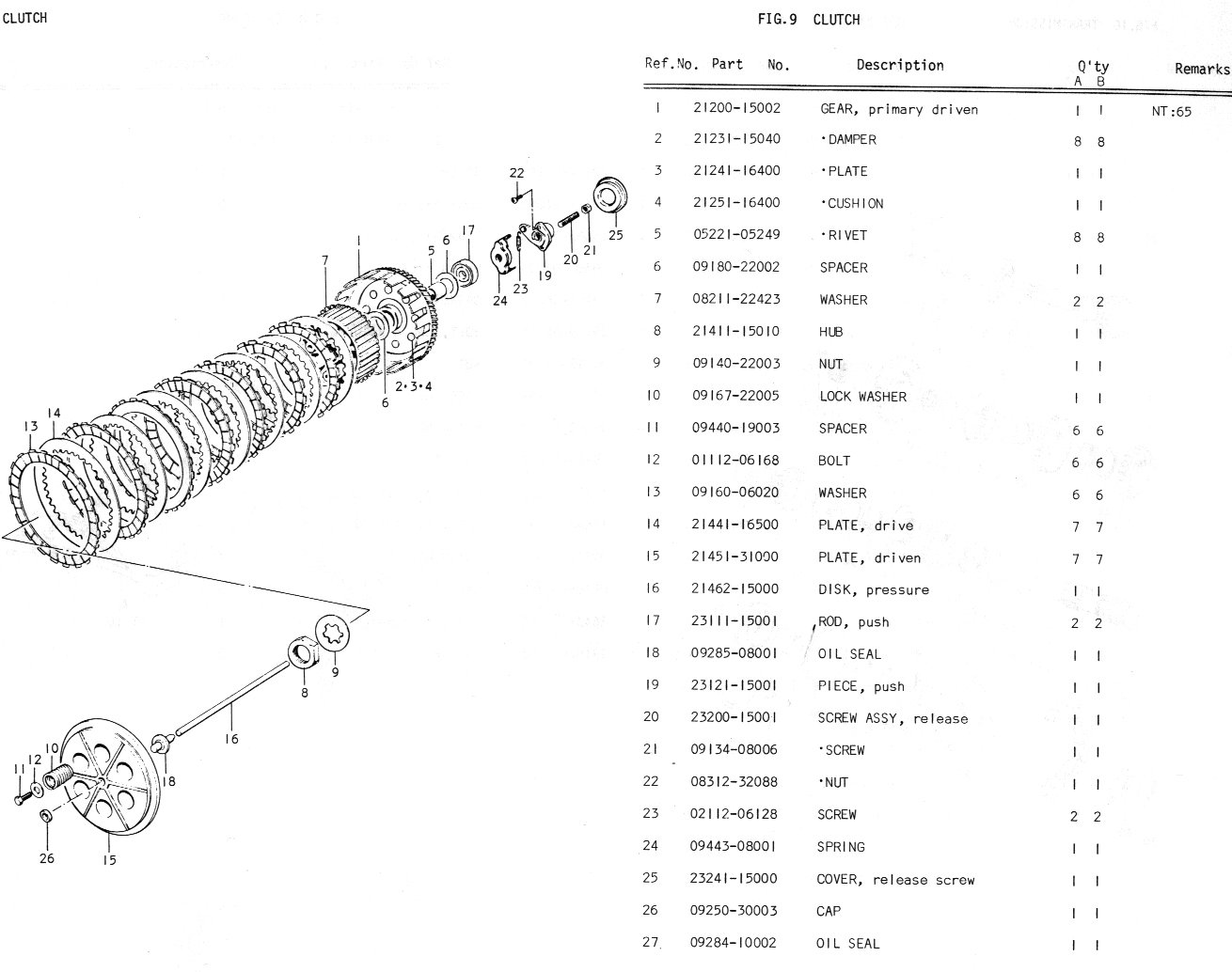

the parts diagram for the clutch is numbered incorrectly from item 4 onwards - the parts listing for the T500 clutch is correct.
