THE 500 SUZUKI PICTURE GALLERY - GT500A -1976

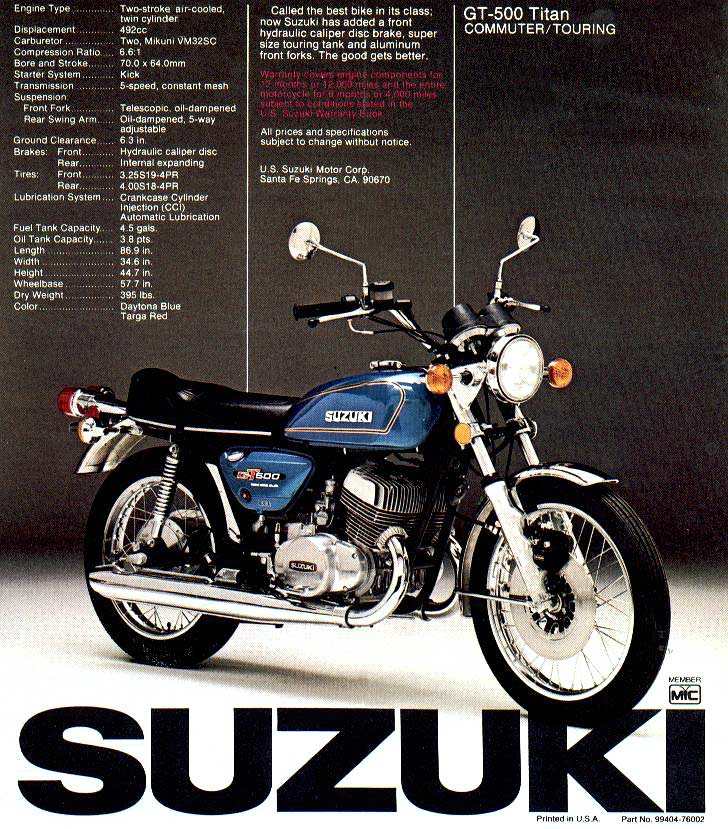

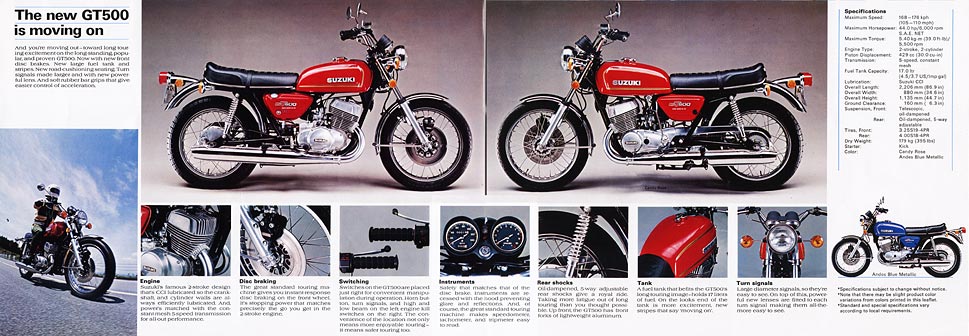

GT 500A 1976
Maximum Speed: 168-176km/h (105-110mph)
Maximum Horsepower: 44hp at 6,000rpm
Maximum Torque: 5.40kg-m (39.0 lb-ft) at 5500 rpm
Engine Type: 2-stroke, aluminum twin cylinder
Piston Displacement: 492cc (30.0cu-in)
Transmission: 5-speed, constant mesh
Fuel Tank Capacity: 17l/4.5gal US
Lubrication: Suzuki CCI
Overall Length: 2195 mm (86.4 in)
Overall Width: 880 mm (34.6 in)
Overall Height: 1105 mm (43.5 in)
Tires, Front: 3.25-19, 4PR
Tires, Rear: 4.00-18 4PR
Dry Weight: 395lbs
