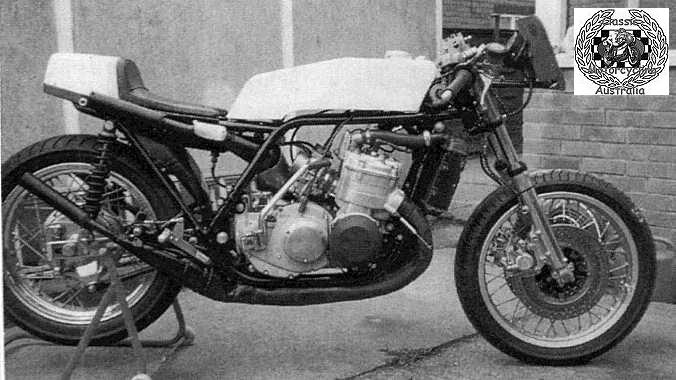

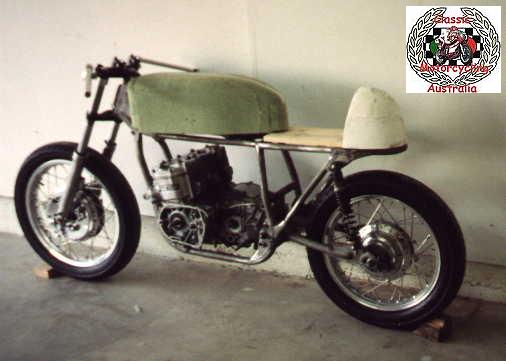

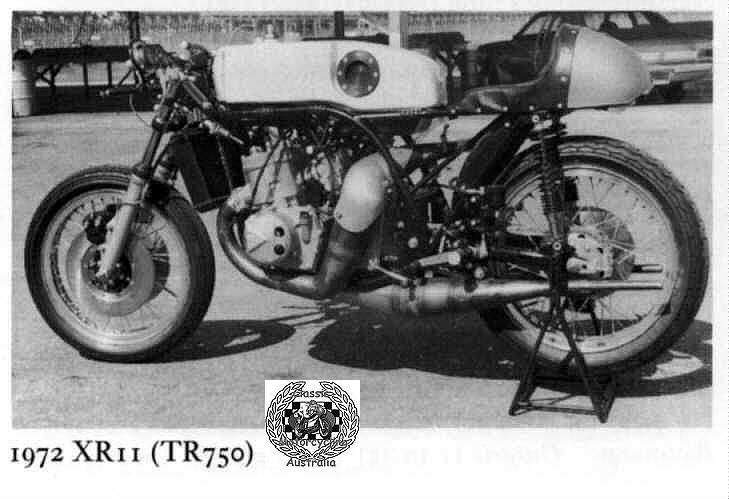

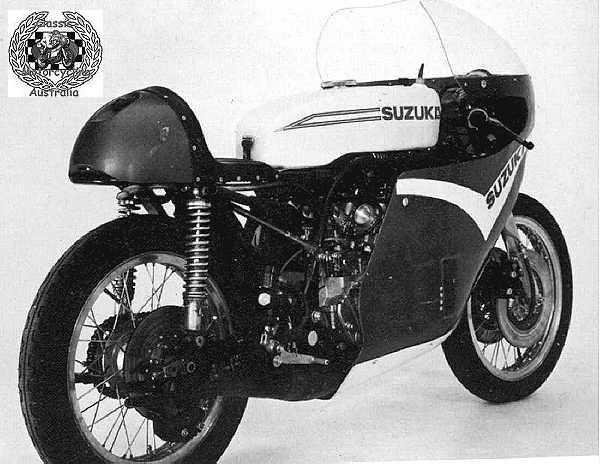

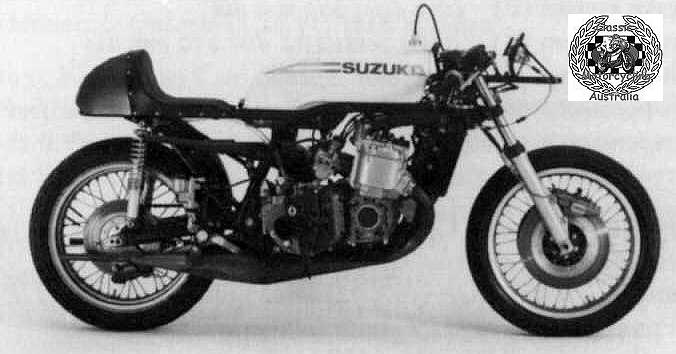

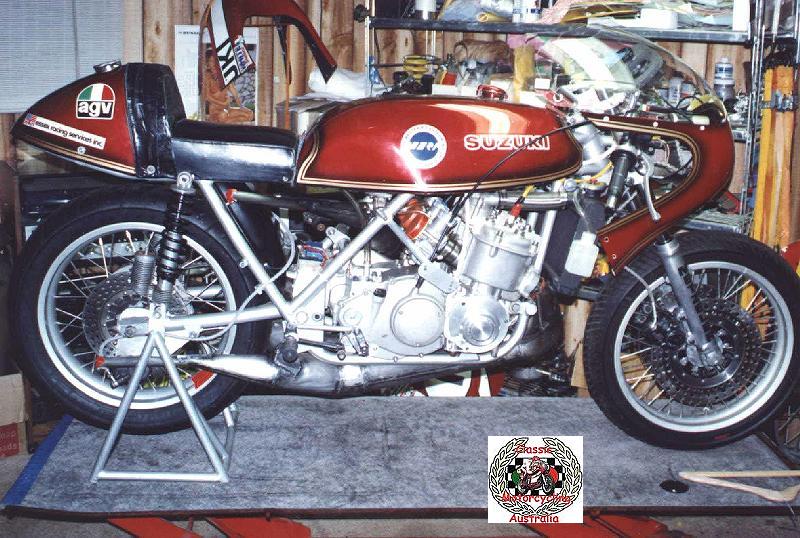

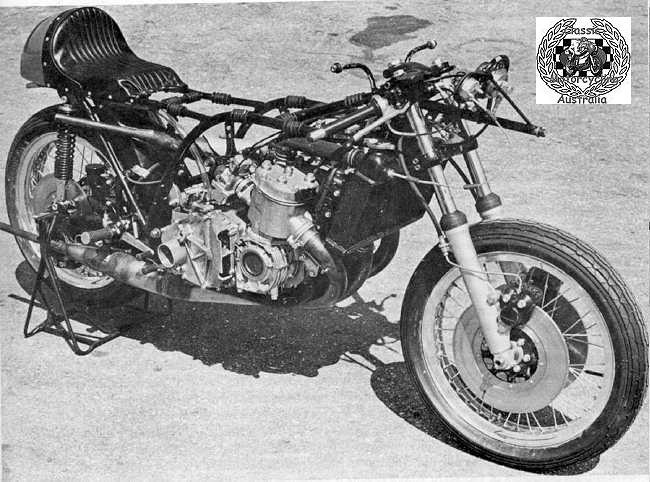

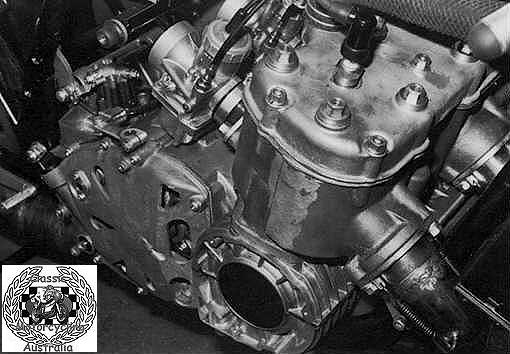

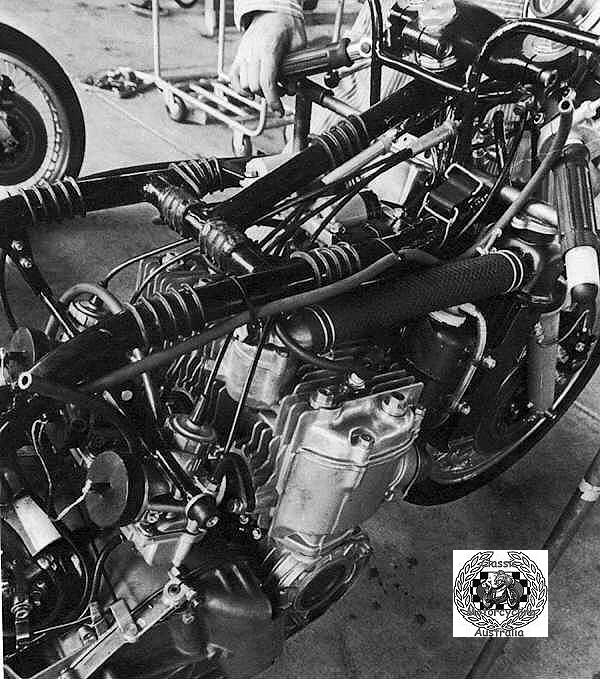

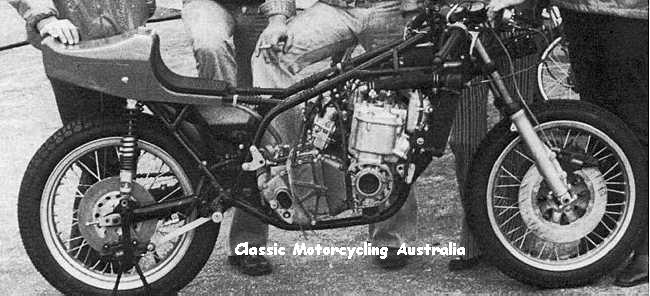

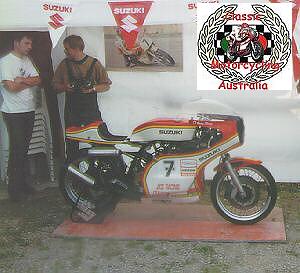

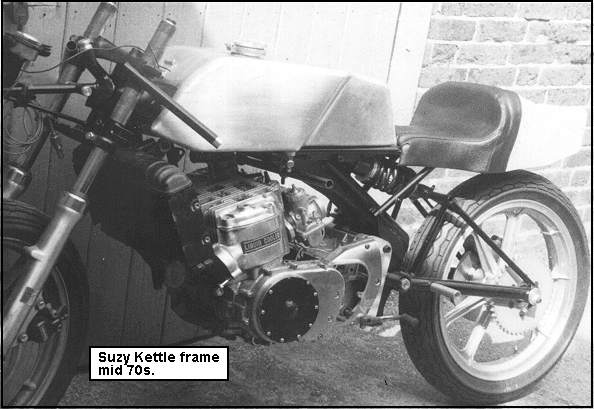

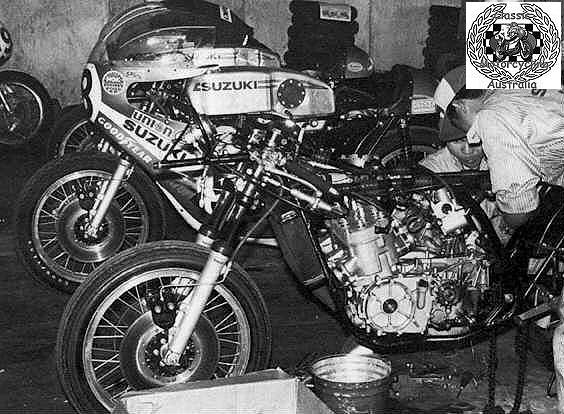

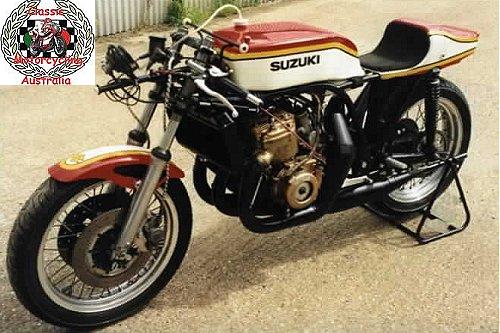

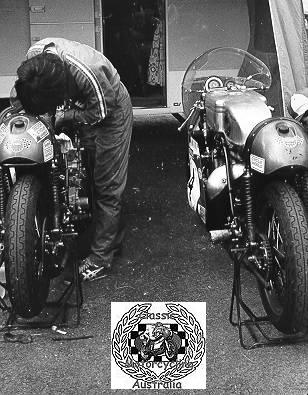

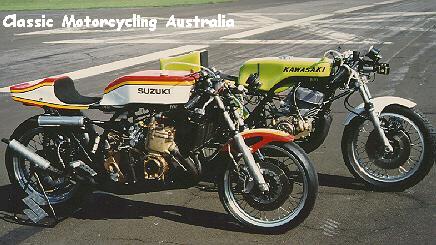

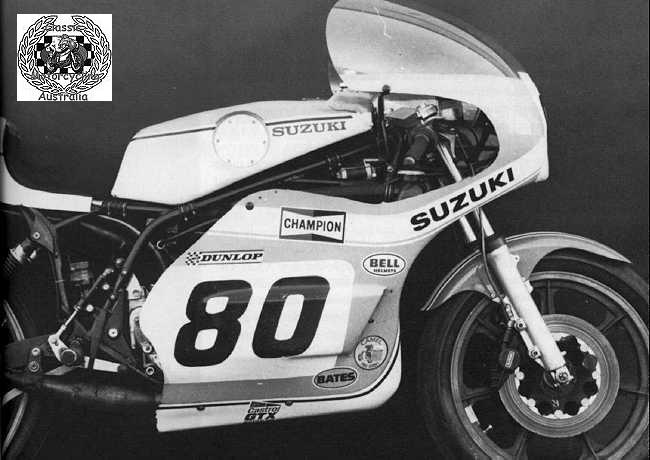

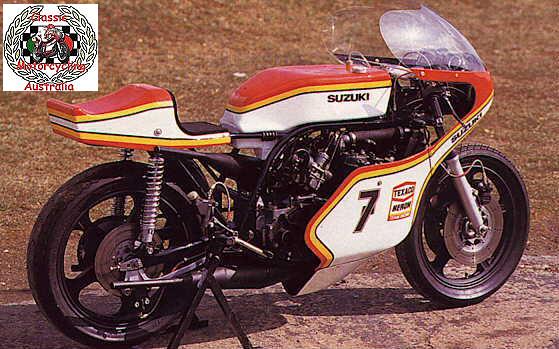

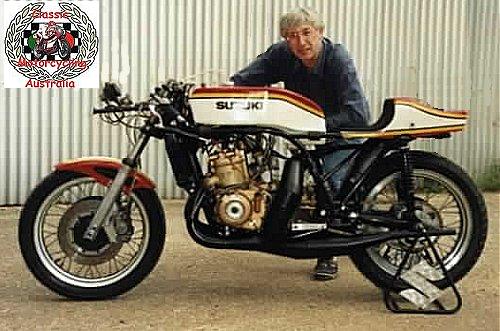

Factory TR750 Suzukis from 1972-76 including some specials

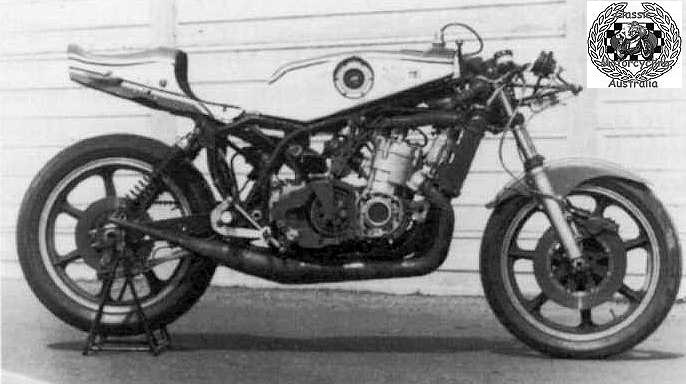

SUZUKITR750

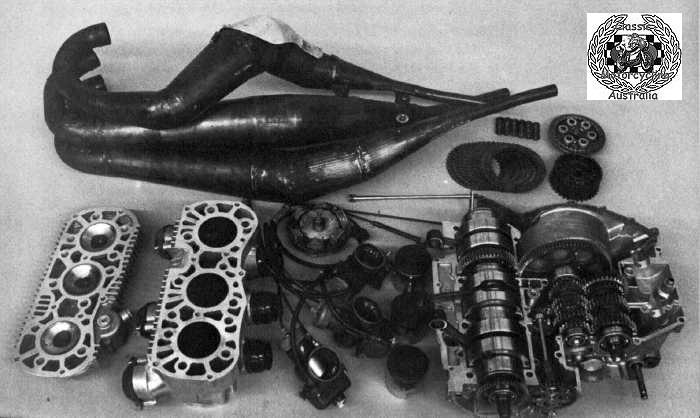

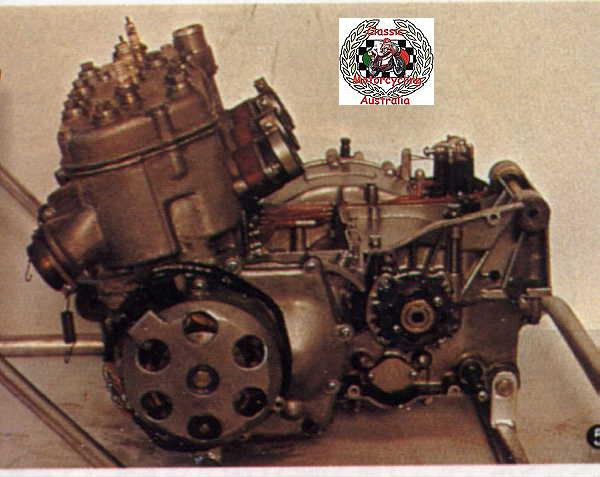

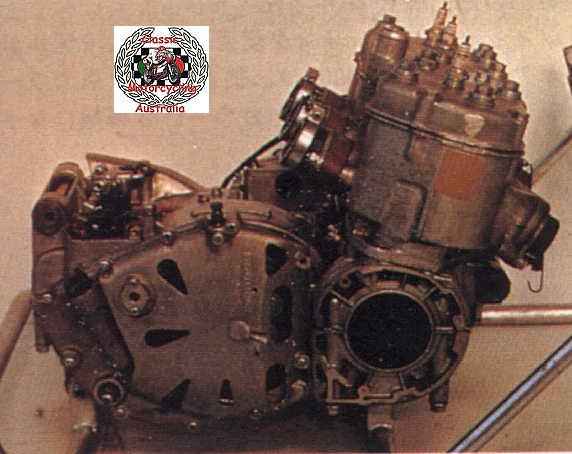

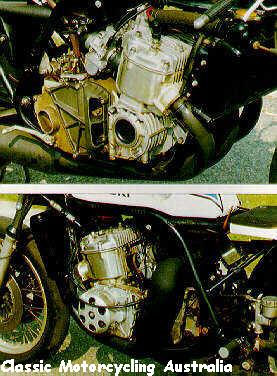

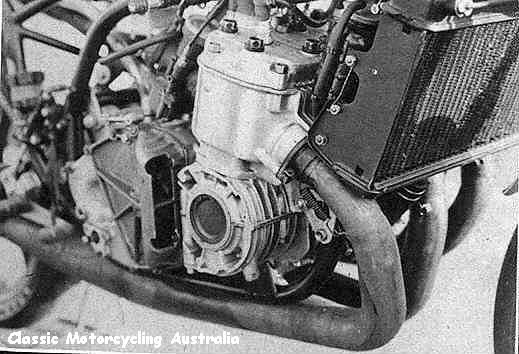

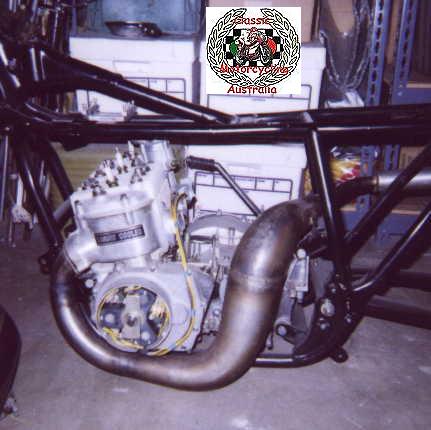

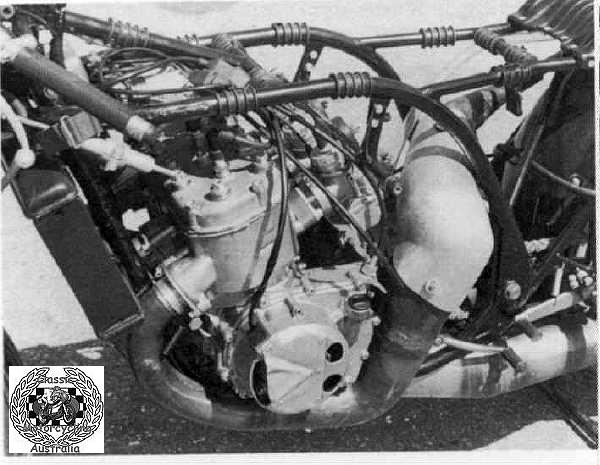

ENGINE

Type Two-stroke, piston-port, triple

Bore and stroke 70mm x 64mm

Piston displacement 738cc

Compression ratio 6.76:1 (variable)

Lubrication .Fuel/oil premix, 20:1 (Shell Super M)

Ignition.... Suzuki P.E.I. (Pointless Electronic Ignition)

Spark Plugs..Champion N57G or N82G

Port Timings:

Intake........ opens/closes 90 degrees -below top dead center, 180 degrees duration

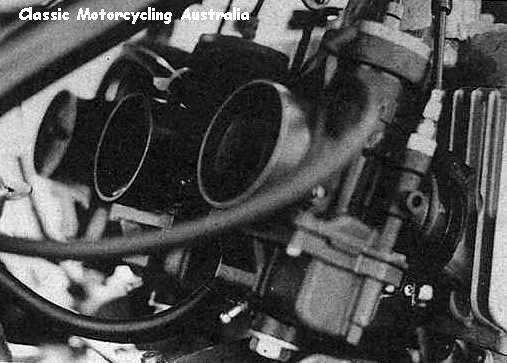

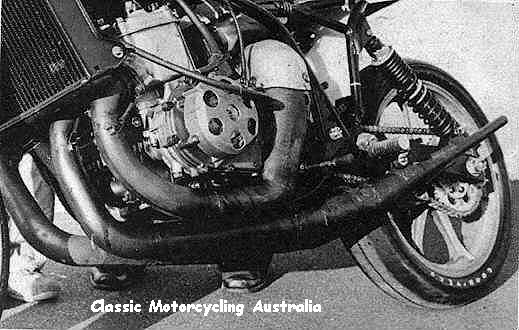

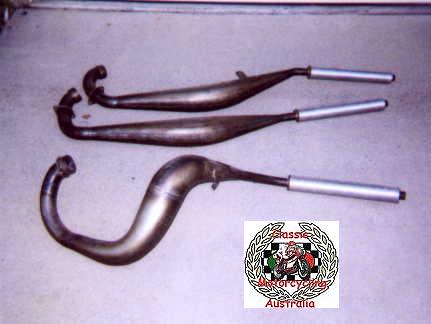

Transfers.... open/close 112 degrees below top dead center, 136 degrees duration Exhaust .:.. opens/closes 80 degrees below top dead center, 200 degrees duration Carburetion. 3x Mikuni VM38SC

Jetting:

Main jet . 280 to 330

Needle jet :. R-2

Jet needle 6DP5-2

Pilot jet ... 45

Air jet... none

Slide cutaway .... 20

Idle air screw . 1% turns out

Bhp @ rpm....112-115 @ 8200 (estimated)

DRIVE TRAIN Primary .... Straight-cut spur gears

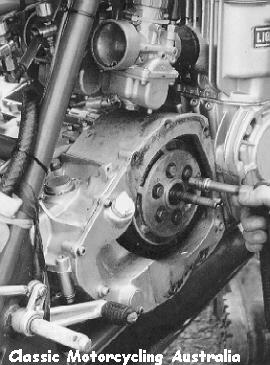

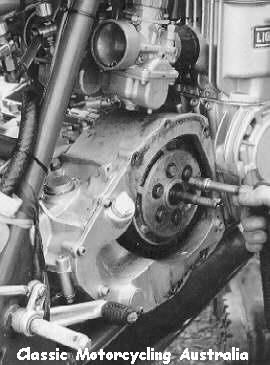

Clutch ... Multi-PPate, dry

Transmission...... Six-speed. constant-mesh

Internal ratios (overall, with 17/41 Ontario sprockets) (1) 2.19:1 (8.30:1) (2) 1.63:1 (6.19:1) (3) 1.33:1(5.06:1) (4) 1.15:1 (4.38:1) (5) 1.04:1 (3.94:1) (6) 0.96:1 (3.65:1)

CHASSIS Wheelbase . 57 in.

Rake/Trail .. 29"/4.17 in.

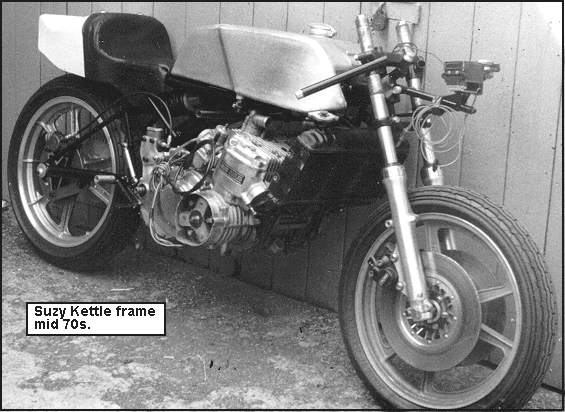

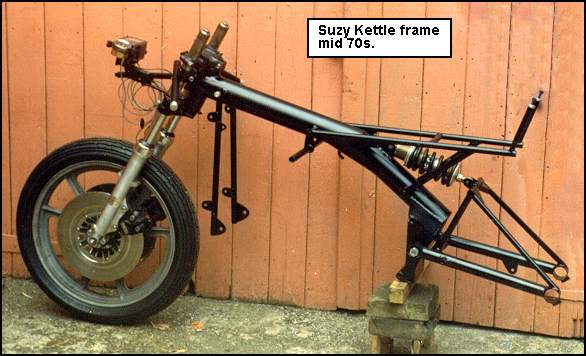

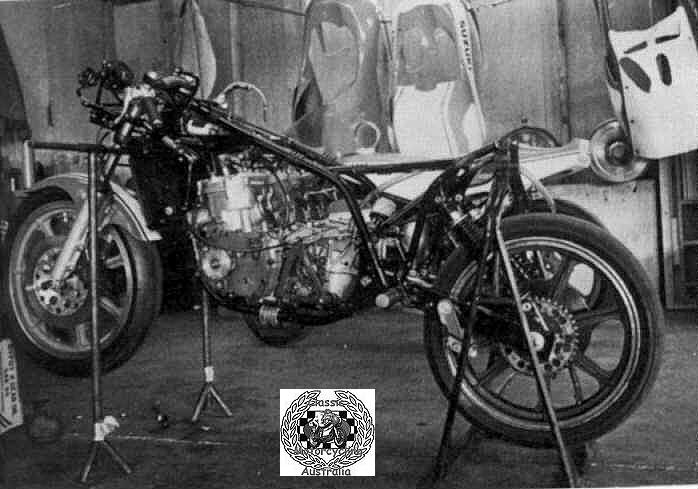

Frame ... Cradle-type, in chromium-molybdenum steel tubing

Wheels ... Morris cast magnesium, 2.5 x 18 front; 3.5 x 18 rear

Tires ... Dunlop 3.25 x 18 front; 3.50 x 18 rear

Suspension ..... Fork and shocks by Kayaba (per Suzuki specifications)

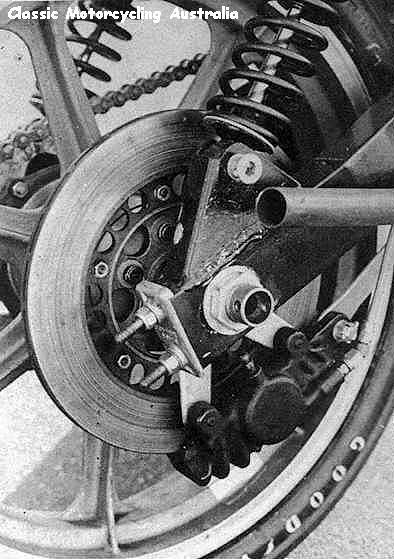

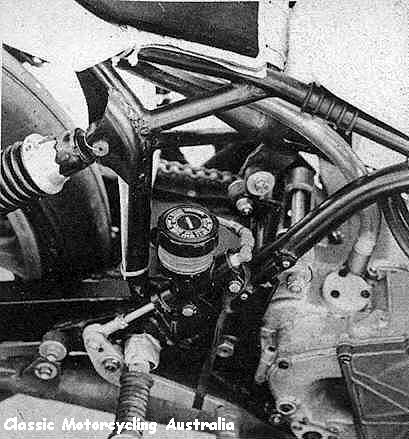

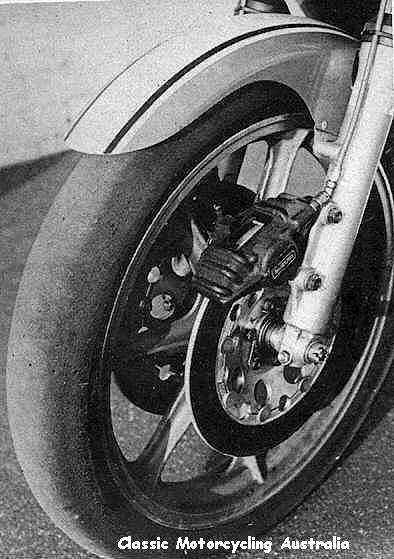

Brakes ... Dual-piston calipers, twin-disc front; single-disc rear

WEIGHTS & CAPACITIES

Weight, dry .....328lbs...

Oil capacity (trans.) 2.7qts
